Server Cabinet

SUNSEA series server cabinets are new generation, high quality cabinet that is designed to meet the modern data center application requirements, with high density, high strength, high ventilation rate features, to meet various application scenarios requirements .

Product Introduction
Product Features
Technical Parameters

Product Introduction

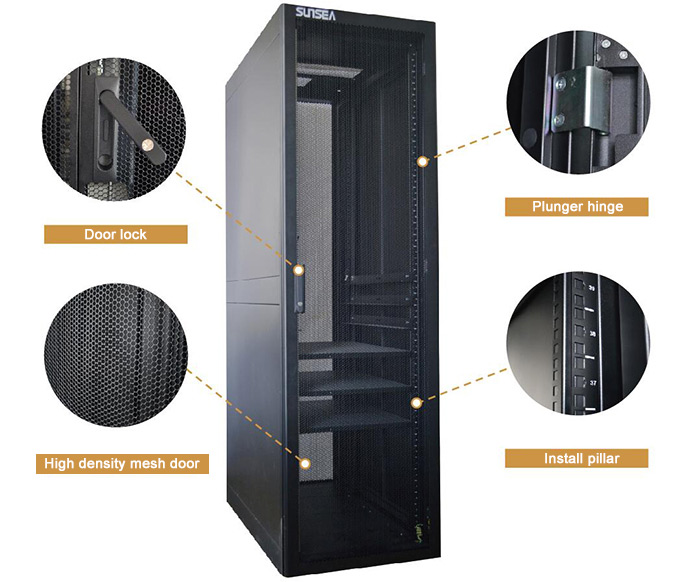

Product Features

The frame column adopts G type bending steel, load-bearing up to 1500KG.

Strong compatibility, Movable front and rear mounting columns, suitable for all kinds of air supply type.

Adopt the whole frame welding, the antiseismic grade reach 8 or 9.

High - density mesh hole, hole porosity up to 76%.

High security, the protection level could reach IP20.

Product Parameters

Specifications（H x W x D）	2000 x 600 x 1000、2000 x 600 x 1100、2000 x 600 x 1200 2200 x 600 x 1000、2200 x 600 x 1100、2200 x 600 x 1200
Installation space	42U 47U
aperture ratio	76%
load-bearing	1500KG
Air inlet type	Bottom Air inlet/Front Air inlet
Color	Black (RAL9004) and international grey (RAL7035)
Carried Standard	IEC297-2/EIN4194
